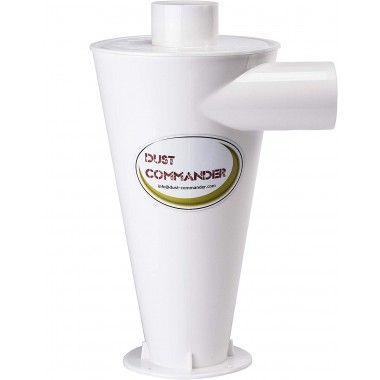

DUST COMMANDER: cyclone filter for individuals, workshops and industry.

The paper filter of a vacuum cleaner clogs quickly, reducing suction power at the inlet, which requires frequent cleaning/replacement of the filter. Replacing paper filters is costly and time consuming.

The DUST COMMANDER, a cyclone-type filter made of injected plastic, is a complement to your workshop vacuum cleaner that will enable you to eliminate the defects of conventional filters. It allows the separation of wet and dry dust particles, thereby limiting the clogging of your vacuum cleaner filters and increasing their service life.

The cyclone separator collects the extracted particles in a sealed chamber that you attach to the base of the cyclone separator.

The cyclone separator filters 99% of the air its sucks up containing dust and fine particles, only depositing 1% of these on your vacuum cleaner filter, which considerably increases its operating life, power and efficiency.

The cyclone separator can be used for a variety of applications, including:

• - sawing/sanding/wood machining
• - interior renovation, DIY
• - dust extraction from building sites (concrete, plaster, etc.)
• - centralised vacuum cleaning
• - etc...

PLEASE NOTE :

this filter is only suitable for household or workshop vacuum cleaners (e.g. Karcher, Aquavac, Festool, Mafell, Fein, etc.) This filter is NOT compatible with chip collectors (HVLP) equipped with 100 mm inlets/outlets.

Dimensions :

• - External diameter of the inlet/outlet ducts: 55 mm.
• - Inner diameter of the inlet/outlet ducts: 50 mm
• - Total height: 310 mm.
• - Cyclone diameter: 150 x 60 mm.

Package contents :

1 x DUST COMMANDER FILTER
1 x ASSEMBLY KIT
2 x 32mm
2 x 35mm ADAPTERS

The DUST COMMANDER CLC Mounting Kit includes :

4 x ISO 7380F M5x12 stainless steel A2 hex button head socket screw with flange
4 x DIN 9021 M5 (5.3) stainless steel A2 washers
4 x DIN 934 M5 stainless steel A2 nuts
1 x rubber gasket
1 x self ashesive cutting template

DUST COMMANDER CLC - datasheet

		How does it work? A mixture of air and dust passes through the filter via the tangential inlet. The shape of the filter is designed to generate a vortex which enables the evacuation by gravity of heavier-than-air particles through the lower ejection port and allows air to pass through the upper outlet.
Convenient Vacuum large amounts of dust/chips/rubble/etc. without filling your vacuum bag.	Powerful Never lose suction power thanks to the cyclone effect.	Economical Save time and money by replacing your vacuum bags up to 20 times less often!

[description_short] =>

• - Polypropylene cyclone filter
• - Inside/outside diameter of the air connections : 50/55mm
• - Filter Efficiency: > 98%
• - Total height : 31cm
• - Ships with 1 x mounting kit, 2 x 32mm and 2 x 35mm adapters

ATTENTION : B STOCK - reconditioned unit - 100% functional - no return or exchange

lot of 3
