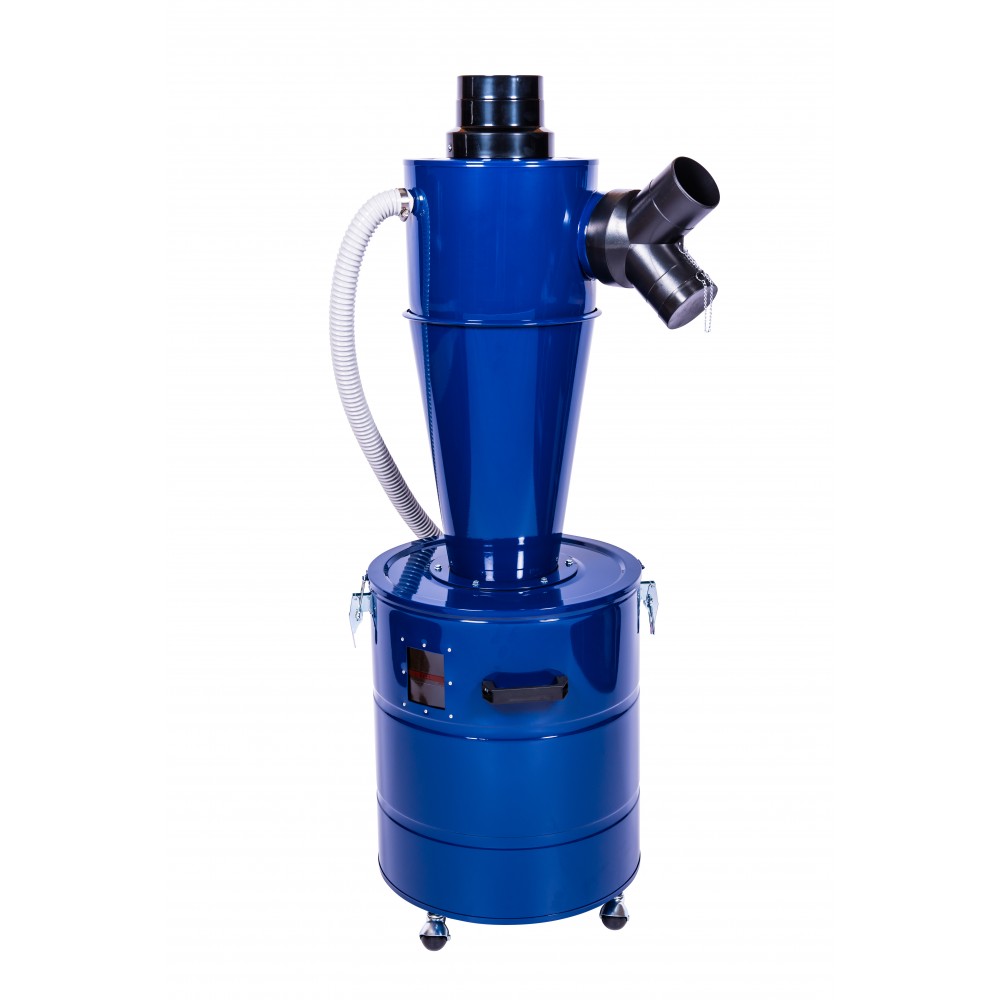

DUST COMMANDER 88212 - 75l capacity Cyclone Separator for dust collector View larger

DUST COMMANDER 88212 - 75l capacity Cyclone Separator for dust collector

Online only

DUST-88212

New product

DUST COMMANDER 88212 - Kit to transform your dust collector into a 2 stage cyclonic system.

More details

19 Items

in stock !

365,83 €

  No tax

-50,00 €

415,83 €

Share

The 150mm inlet port and two 100mm ports allow you to connect multiple machines.

A viewing window lets you know when to empty the drum, and a unique vacuum equalization system allows the use of plastic collection bags for easy chip disposal.

SPECIFICATIONS:

  • Horsepower range: 1 to 3 HP
  • Drum size: 50cm diameter x 58cm H
  • Maximum drum capacity: 75 liters
  • Airflow rate: 800–2400 m3/h @ 7.8–10.8 kpa
  • 180mm–150mm Outlet reducer
  • Additionnal 125mm/100mm/75mm/63mm/50mm/25mm outlet adapter
  • 150mm Inlet with 2 x 100mm "Y" adapter
  • 1.0mm thick steel construction
  • Overall dimensions: 50cm x 50cm x 140cm (WxDxH)
  • Unit weight: 19.5kgs
  • Approximate shipping weight: 22 kgs.

FEATURES:

  • Steel collection drum with 2" casters for easy dust disposal and mobility
  • Vacuum equalizer hose allows the use of plastic drum liner bags for no-mess dust disposal
  • Sight window on drum indicates when drum is full
  • Compatible with dust collectors up to 3 HP
  • Improves performance and reduces suction loss from dirty filters
Max. air flow 3900m3/h
Manufacturing material Steel
Height 152cm
Width 64
Depth 56
Weight 19.5kg
Color blue
Wall thickness (drum) 1.0mm

Accessories

M103N - Master/Slave switch 230 V/ AC (400 V/AC)
New product
Array ( [id_product] => 55 [id_supplier] => 0 [id_manufacturer] => 0 [id_category_default] => 16 [id_shop_default] => 1 [id_tax_rules_group] => 9 [on_sale] => 0 [online_only] => 0 [ean13] => 4024028031033 [upc] => 85364900 [ecotax] => 0.000000 [quantity] => 7 [minimal_quantity] => 1 [price] => 24.9 [wholesale_price] => 12.520000 [unity] => [unit_price_ratio] => 0.000000 [additional_shipping_cost] => 0.00 [reference] => KEMO-M103N [supplier_reference] => [location] => [width] => 16.000000 [height] => 8.500000 [depth] => 4.500000 [weight] => 0.260000 [out_of_stock] => 2 [quantity_discount] => 0 [customizable] => 0 [uploadable_files] => 0 [text_fields] => 0 [active] => 1 [redirect_type] => 404 [id_product_redirected] => 0 [available_for_order] => 1 [available_date] => 0000-00-00 [condition] => new [show_price] => 1 [indexed] => 1 [visibility] => both [cache_is_pack] => 0 [cache_has_attachments] => 0 [is_virtual] => 0 [cache_default_attribute] => 0 [date_add] => 2022-10-20 14:27:31 [date_upd] => 2024-02-11 09:44:50 [advanced_stock_management] => 0 [pack_stock_type] => 3 [free_delivery] => 0 [id_shop] => 1 [description] =>
Technical Data
Operating Voltage
 230 V/AC
Maximum Currents
15 A for the master, 15 A for the slave, but the total current must not exceed 16 A!
Example
if the master port needs 10 A, only one slave load of max. 6 A can be connected
Tripping Power The module connects at currents of approx. 40 mA or less
Operating temperature range -15 ºC to + 70 ºC
Switch Function Relay 1 x ON max. 16 A
Own Power Module <0.5 W
Dimensions without mounting brackets 67 x 65 x 37 mm
Connection Connection cable (single core)

Datasheet (pdf)

[description_short] =>

Automatically switches another load on when a machine, lamp etc., is turned on. It can monitor 1-phase or 3-phase (where a single phase is sampled) machines. On the output side, 1-phase devices (e.g. vacuum cleaner) are switched on automatically (or three-phase loads with an auxiliary relay, not included). Maximum of 15 A each. Total output: 3600 W.

[link_rewrite] => m103n-masterslave-switch-230-v-ac-400-vac [meta_description] => [meta_keywords] => [meta_title] => [name] => M103N - Master/Slave switch 230 V/ AC (400 V/AC) [available_now] => [available_later] => [id_image] => 55-239 [legend] => M103N - Master/Slave switch 230 V/ AC (400 V/AC) [manufacturer_name] => [category_default] => Accessories [id_product_attribute] => 0 [new] => 0 [allow_oosp] => 0 [category] => accessories [link] => https://www.dust-commander.com/gb/p/55-m103n-masterslave-switch-230-v-ac-400-vac-4024028031033.html [attribute_price] => 0 [price_tax_exc] => 24.9 [price_without_reduction] => 24.9 [reduction] => 0 [specific_prices] => [quantity_all_versions] => 7 [features] => Array ( ) [attachments] => Array ( ) [virtual] => 0 [pack] => 0 [packItems] => Array ( ) [nopackprice] => 0 [customization_required] => [rate] => 0 [tax_name] => ) 1

Automatically switches another load on when a machine, lamp etc., is turned on. It can monitor 1-phase or 3-phase (where a single phase is sampled) machines. On the output side, 1-phase devices (e.g. vacuum cleaner) are switched on automatically (or three-phase loads with an auxiliary relay, not included). Maximum of 15 A each. Total output: 3600 W.
24,90 €
Add to cart
In Stock
DUST COMMANDER HPU - Polyurethane flexible ducting (10m)
New product
Array ( [id_product] => 58 [id_supplier] => 0 [id_manufacturer] => 2 [id_category_default] => 16 [id_shop_default] => 1 [id_tax_rules_group] => 9 [on_sale] => 0 [online_only] => 0 [ean13] => [upc] => 39173200 [ecotax] => 0.000000 [quantity] => 3 [minimal_quantity] => 1 [price] => 83.5 [wholesale_price] => 50.100000 [unity] => [unit_price_ratio] => 0.000000 [additional_shipping_cost] => 0.00 [reference] => DUST-HPU [supplier_reference] => [location] => [width] => 0.000000 [height] => 0.000000 [depth] => 0.000000 [weight] => 5.500000 [out_of_stock] => 2 [quantity_discount] => 0 [customizable] => 0 [uploadable_files] => 0 [text_fields] => 0 [active] => 1 [redirect_type] => 404 [id_product_redirected] => 0 [available_for_order] => 1 [available_date] => 0000-00-00 [condition] => new [show_price] => 1 [indexed] => 1 [visibility] => both [cache_is_pack] => 0 [cache_has_attachments] => 0 [is_virtual] => 0 [cache_default_attribute] => 15 [date_add] => 2022-11-23 12:55:58 [date_upd] => 2024-02-22 09:20:52 [advanced_stock_management] => 0 [pack_stock_type] => 3 [free_delivery] => 0 [id_shop] => 1 [description] =>

Applications:
Designed for suction of air, dust, oil and petrol fumes. Good abrasion resistance and compressibility

Areas of application:
Industrial vacuum cleaners, textile machines, woodworking machines, granulate conveyors and apparatus construction

Temperature range:
-30 ° C to + 100 ° C

Color :
Transparent

Spiral direction:
counter-clockwise (left)

Available in 4 diameters (internal):

-50mm

-55mm

-100mm

-125mm

-150mm

***************************************************************************************************

internal Ø

mm

external Ø

mm

radius of curvature

(min) mm

Wall thickness

mm

Weight

kg/m

Vacuum

(max.) mbar

Pressure

(max.) bar
50 56 50 0.5 0.400 280 1.3
55 63 55 0.5 0.445 250 1.10
100 109 70 0.4 0.406 90 0.2
125 133 88 0.4 0.507 80 0.2
150 158 105 0.4 0.780 60 0.1

***************************************************************************************************

[description_short] =>

- Flexible ducting made out of polyether polyurethane wall reinforced with copper-coated spring steel wire for grounding. Microbe and Hydrolysis resistant

- Delivered in multiples of 10m. Maximum length of one piece: 10m

- If you order 2 x 10m you will receive 2 x 10m of hose.

- Spiral direction : counter-clockwise (left)

[link_rewrite] => dust-commander-hesd-antistatic-vacuum-hose-3m [meta_description] => [meta_keywords] => [meta_title] => [name] => DUST COMMANDER HPU - Polyurethane flexible ducting (10m) [available_now] => In stock [available_later] => [id_image] => 58-251 [legend] => DUST COMMANDER HPU - Polyurethane flexible ducting (10m) [manufacturer_name] => Sulaco A.I.R Works [category_default] => Accessories [id_product_attribute] => 15 [new] => 0 [allow_oosp] => 0 [category] => accessories [link] => https://www.dust-commander.com/gb/p/58-dust-commander-hesd-antistatic-vacuum-hose-3m.html [attribute_price] => 0 [price_tax_exc] => 83.5 [price_without_reduction] => 83.5 [reduction] => 0 [specific_prices] => [quantity_all_versions] => 22 [features] => Array ( [0] => Array ( [name] => Manufacturing material [value] => Polyurethane/steel [id_feature] => 5 ) [1] => Array ( [name] => Color [value] => Transparent [id_feature] => 7 ) ) [attachments] => Array ( ) [virtual] => 0 [pack] => 0 [packItems] => Array ( ) [nopackprice] => 0 [customization_required] => [rate] => 0 [tax_name] => ) 1

- Flexible ducting made out of polyether polyurethane wall reinforced with copper-coated spring steel wire for grounding. Microbe and Hydrolysis resistant - Delivered in multiples of 10m. Maximum length of one piece: 10m - If you order 2 x 10m you will receive 2 x 10m of hose. - Spiral direction : counter-clockwise (left)
83,50 €
Add to cart
In stock

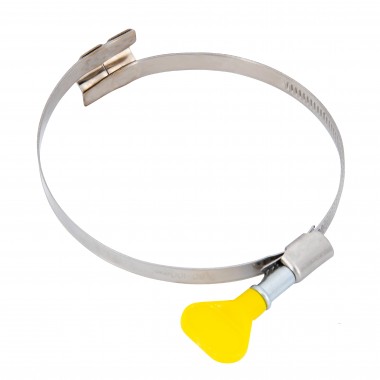

DUST COMMANDER KBHC - Keyed Bridge Hose Clamp
New product
Array ( [id_product] => 77 [id_supplier] => 0 [id_manufacturer] => 0 [id_category_default] => 16 [id_shop_default] => 1 [id_tax_rules_group] => 9 [on_sale] => 0 [online_only] => 0 [ean13] => [upc] => 82057000 [ecotax] => 0.000000 [quantity] => 30 [minimal_quantity] => 1 [price] => 1.9 [wholesale_price] => 1.580000 [unity] => [unit_price_ratio] => 0.000000 [additional_shipping_cost] => 0.00 [reference] => DUST-KBHC [supplier_reference] => [location] => [width] => 0.000000 [height] => 0.000000 [depth] => 0.000000 [weight] => 0.035000 [out_of_stock] => 2 [quantity_discount] => 0 [customizable] => 0 [uploadable_files] => 0 [text_fields] => 0 [active] => 1 [redirect_type] => 404 [id_product_redirected] => 0 [available_for_order] => 1 [available_date] => 0000-00-00 [condition] => new [show_price] => 1 [indexed] => 1 [visibility] => both [cache_is_pack] => 0 [cache_has_attachments] => 0 [is_virtual] => 0 [cache_default_attribute] => 9 [date_add] => 2023-04-19 10:00:49 [date_upd] => 2024-02-19 13:15:42 [advanced_stock_management] => 0 [pack_stock_type] => 3 [free_delivery] => 0 [id_shop] => 1 [description] => [description_short] =>

Bridged pipe clamp with butterfly spanner.

Used for fixing hoover hoses, air ducts, PVC pipes and much more.

Compatible with spiral hoses (beware spiral direction) - bridged band for optimum clamping - quick installation without tools.

Stainless steel construction, waterproof and corrosion resistant.

Various sizes available.

[link_rewrite] => dust-commander-kbhc-keyed-bridge-hose-clamp [meta_description] => [meta_keywords] => [meta_title] => [name] => DUST COMMANDER KBHC - Keyed Bridge Hose Clamp [available_now] => [available_later] => [id_image] => 77-382 [legend] => DUST COMMANDER KBHC - Keyed Bridge Hose Clamp [manufacturer_name] => [category_default] => Accessories [id_product_attribute] => 9 [new] => 0 [allow_oosp] => 0 [category] => accessories [link] => https://www.dust-commander.com/gb/p/77-dust-commander-kbhc-keyed-bridge-hose-clamp.html [attribute_price] => 0 [price_tax_exc] => 1.9 [price_without_reduction] => 1.9 [reduction] => 0 [specific_prices] => [quantity_all_versions] => 162 [features] => Array ( ) [attachments] => Array ( ) [virtual] => 0 [pack] => 0 [packItems] => Array ( ) [nopackprice] => 0 [customization_required] => [rate] => 0 [tax_name] => ) 1

Bridged pipe clamp with butterfly spanner. Used for fixing hoover hoses, air ducts, PVC pipes and much more. Compatible with spiral hoses (beware spiral direction) - bridged band for optimum clamping - quick installation without tools. Stainless steel construction, waterproof and corrosion resistant. Various sizes available.
1,90 €
Add to cart
In Stock
