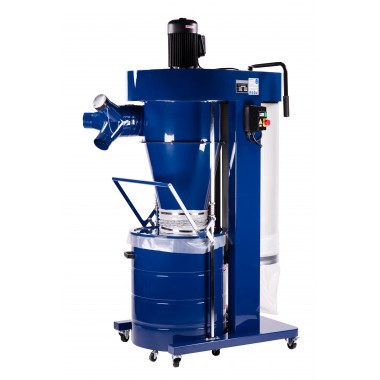

The DUST COMMANDER CDC301 Portable Cyclone Dust Collector features an input air flow of 3300m/3 and up to 2.7Kpa of static pressure, creating a vortex of incoming air that extracts heavy wood chips and large dust particles into a plastic-bag-lined steel drum.

The remaining fine dust traveling past the impeller, is caught by a canister filter and then deposited in a separate plastic collection bag.

The spun-bond polyester filter catches 99.9% of particles to 1 micron in size and is pleated to provide maximum surface area for efficient air flow.

A turn of the crank handle rotates the paddle brushes, knocking caked-on dust off of the pleats to keep your airflow rate as high as possible.

The collection drum features a quick-release handle that makes it easy to roll it out for sawdust disposal.

A viewing window lets you know when to empty the drum, and a unique vacuum equalization system allows the use of plastic collection bags for easy chip disposal.

3 x 100mm ports allow you to connect multiple machines.

This cyclone has a normal operating sound range < 79 dB

Please note: machine delivered in kit form for assembly.
Supplied without mains plug.

SPECIFICATIONS:

• Motor: 3 HP, 220V, single-phase, 15A
• Intake hole size: 200mm with 3 x 100mm adapter
• 1.0mm thick steel construction
• Airflow capacity: 3300m3/h @ 0.72Kpa
• Max static pressure: 2.7kPa
• Filtration: 1 micron
• Filter surface area: 4.18m3/h
• Collection size: 170 liters
• Sound rating: < 79dB
• Overall dimensions : 79 x 137 x 208cm
• Approximate weight: 150kg
• Approximate shipping weight: 170kg

FEATURES:

• Collection drum with quick-release handle for easy disposal
• Two-stage operation for ultimate dust collection
• Wireless remote-control operation
• Swivel casters
• Lift handle and roll drum for easy sawdust disposal
• Pleated filter with paddle brushes and crank handle for max air flow efficiency
• Vacuum equalizer built into collection drum for use with disposable plastic bags

[description_short] =>

DUST COMMANDER CDC301 - 3HP Portable Cyclone Dust Collector - single phase
