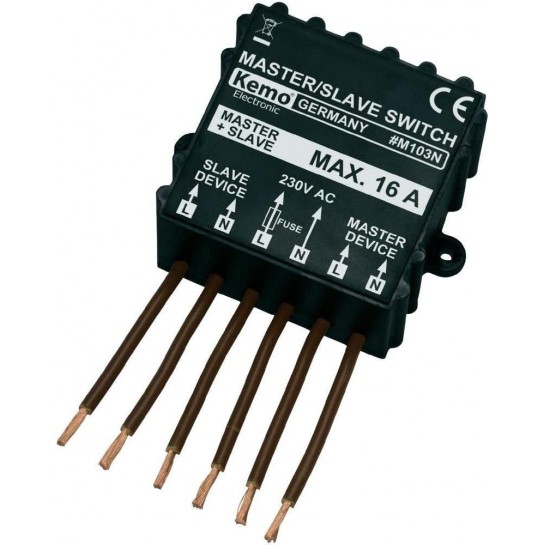

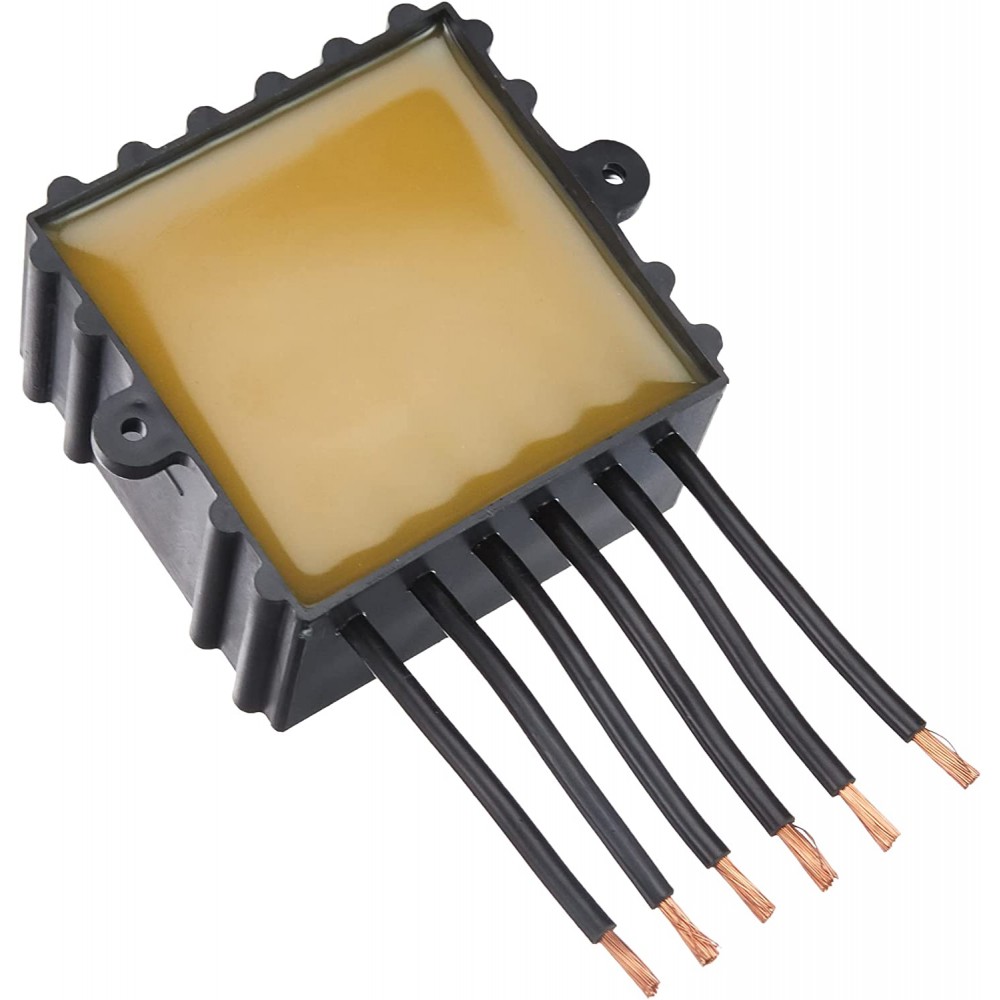

M103N - Master/Slave switch 230 V/ AC (400 V/AC)
KEMO-M103N
New product
Automatically switches another load on when a machine, lamp etc., is turned on. It can monitor 1-phase or 3-phase (where a single phase is sampled) machines. On the output side, 1-phase devices (e.g. vacuum cleaner) are switched on automatically (or three-phase loads with an auxiliary relay, not included). Maximum of 15 A each. Total output: 3600 W.
9 Items
| Technical Data | |
|
Operating Voltage
|
230 V/AC |
| Maximum Currents |
15 A for the master, 15 A for the slave, but the total current must not exceed 16 A!
|
| Example |
if the master port needs 10 A, only one slave load of max. 6 A can be connected
|
| Tripping Power | The module connects at currents of approx. 40 mA or less |
| Operating temperature range | -15 ºC to + 70 ºC |
| Switch Function | Relay 1 x ON max. 16 A |
| Own Power Module | <0.5 W |
| Dimensions without mounting brackets | 67 x 65 x 37 mm |
| Connection | Connection cable (single core) |
