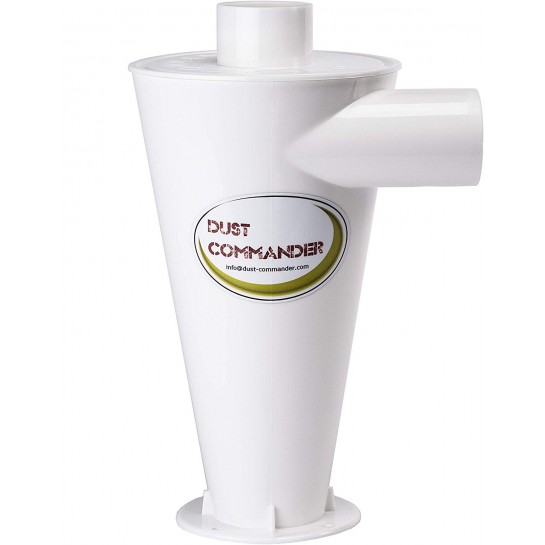

DUST COMMANDER CLC - Cyclone filter View larger

DUST COMMANDER CLC - B STOCK - LOT OF 3 - Cyclone filter element / Dust collector

Online only

DUST-CLC-B-STOCK

Refurbished

  • - Polypropylene cyclone filter
  • - Inside/outside diameter of the air connections : 50/55mm
  • - Filter Efficiency: > 98%
  • - Total height : 31cm
  • - Ships with 1 x mounting kit, 2 x 32mm and 2 x 35mm adapters

ATTENTION : B STOCK - reconditioned unit - 100% functional - no return or exchange

lot of 3

More details

This product is no longer in stock

33,25 €

  No tax

Share

DUST COMMANDER: cyclone filter for individuals, workshops and industry.

The paper filter of a vacuum cleaner clogs quickly, reducing suction power at the inlet, which requires frequent cleaning/replacement of the filter. Replacing paper filters is costly and time consuming.

The DUST COMMANDER, a cyclone-type filter made of injected plastic, is a complement to your workshop vacuum cleaner that will enable you to eliminate the defects of conventional filters. It allows the separation of wet and dry dust particles, thereby limiting the clogging of your vacuum cleaner filters and increasing their service life.

The cyclone separator collects the extracted particles in a sealed chamber that you attach to the base of the cyclone separator.

The cyclone separator filters 99% of the air its sucks up containing dust and fine particles, only depositing 1% of these on your vacuum cleaner filter, which considerably increases its operating life, power and efficiency.

The cyclone separator can be used for a variety of applications, including:

  • - sawing/sanding/wood machining
  • - interior renovation, DIY
  • - dust extraction from building sites (concrete, plaster, etc.)
  • - centralised vacuum cleaning
  • - etc...
PLEASE NOTE :

this filter is only suitable for household or workshop vacuum cleaners (e.g. Karcher, Aquavac, Festool, Mafell, Fein, etc.) This filter is NOT compatible with chip collectors (HVLP) equipped with 100 mm inlets/outlets.

Dimensions :
  • - External diameter of the inlet/outlet ducts: 55 mm.
  • - Inner diameter of the inlet/outlet ducts: 50 mm
  • - Total height: 310 mm.
  • - Cyclone diameter: 150 x 60 mm.
Package contents :

1 x DUST COMMANDER FILTER
1 x ASSEMBLY KIT
2 x 32mm
2 x 35mm ADAPTERS

The DUST COMMANDER CLC Mounting Kit includes :

4 x ISO 7380F M5x12 stainless steel A2 hex button head socket screw with flange
4 x DIN 9021 M5 (5.3) stainless steel A2 washers
4 x DIN 934 M5 stainless steel A2 nuts
1 x rubber gasket
1 x self ashesive cutting template

DUST COMMANDER CLC - datasheet

How does it work?

A mixture of air and dust passes through the filter via the tangential inlet. The shape of the filter is designed to generate a vortex which enables the evacuation by gravity of heavier-than-air particles through the lower ejection port and allows air to pass through the upper outlet.

Convenient

Vacuum large amounts of dust/chips/rubble/etc. without filling your vacuum bag.

Powerful

Never lose suction power thanks to the cyclone effect.

Economical

Save time and money by replacing your vacuum bags up to 20 times less often!
Max. air flow 240m³/h
Internal / external diameter of the inlet / outlet ducts 49/55 mm
Height 30.5 cm
Width 19.5 cm
Depth 15.5 cm
Weight 370 g
Color white

Accessories

DUST COMMANDER DUST-SP - Anti-crush valve
New product
Array ( [id_product] => 19 [id_supplier] => 0 [id_manufacturer] => 2 [id_category_default] => 16 [id_shop_default] => 1 [id_tax_rules_group] => 9 [on_sale] => 0 [online_only] => 0 [ean13] => 3760013430467 [upc] => 84811099 [ecotax] => 0.000000 [quantity] => 993 [minimal_quantity] => 1 [price] => 5 [wholesale_price] => 0.690000 [unity] => [unit_price_ratio] => 0.000000 [additional_shipping_cost] => 0.00 [reference] => DUST-SP [supplier_reference] => [location] => [width] => 0.000000 [height] => 0.000000 [depth] => 0.000000 [weight] => 0.025000 [out_of_stock] => 2 [quantity_discount] => 0 [customizable] => 0 [uploadable_files] => 0 [text_fields] => 0 [active] => 1 [redirect_type] => 404 [id_product_redirected] => 0 [available_for_order] => 1 [available_date] => 0000-00-00 [condition] => new [show_price] => 1 [indexed] => 1 [visibility] => both [cache_is_pack] => 0 [cache_has_attachments] => 0 [is_virtual] => 0 [cache_default_attribute] => 0 [date_add] => 2020-02-02 14:56:00 [date_upd] => 2024-04-11 10:46:51 [advanced_stock_management] => 0 [pack_stock_type] => 3 [free_delivery] => 0 [id_shop] => 1 [description] =>

Please note that if ordered alone this product is shipped by post with no tracking service.

This vacuum relief valve is recommend when using a shop vac in combination with a DUST COMMANDER CLC, DLX or HD and a plastic drum (max. recommended : 60l). This valve is not useful for HVLP systems (high volume, low pressure) such as the DUST COMMANDER XL, XL+ and K140 as the maximum static pressure generated by a dust collector is not sufficient to cause a plastic or kraft drum to collapse.

We ship the DUST COMMANDER DUST-SP valve anywhere in Europe, USA, Canada and Australia.

[description_short] =>

Anti-crushing valve for plastic drums.

[link_rewrite] => dust-commander-dust-sp-anti-crush-valve [meta_description] => [meta_keywords] => [meta_title] => [name] => DUST COMMANDER DUST-SP - Anti-crush valve [available_now] => [available_later] => [id_image] => 19-174 [legend] => DUST COMMANDER DUST-SP - Anti-crush valve [manufacturer_name] => Sulaco A.I.R Works [category_default] => Accessories [id_product_attribute] => 0 [new] => 0 [allow_oosp] => 0 [category] => accessories [link] => https://www.dust-commander.com/gb/p/19-dust-commander-dust-sp-anti-crush-valve-3760013430467.html [attribute_price] => 0 [price_tax_exc] => 5 [price_without_reduction] => 5 [reduction] => 0 [specific_prices] => [quantity_all_versions] => 993 [features] => Array ( ) [attachments] => Array ( ) [virtual] => 0 [pack] => 0 [packItems] => Array ( ) [nopackprice] => 0 [customization_required] => [rate] => 0 [tax_name] => ) 1

Anti-crushing valve for plastic drums.
5,00 €
Add to cart
In Stock
DUST COMMANDER HESD - Antistatic vacuum hose
New product
Array ( [id_product] => 26 [id_supplier] => 0 [id_manufacturer] => 2 [id_category_default] => 16 [id_shop_default] => 1 [id_tax_rules_group] => 9 [on_sale] => 0 [online_only] => 0 [ean13] => [upc] => 39173200 [ecotax] => 0.000000 [quantity] => 30 [minimal_quantity] => 1 [price] => 16.24 [wholesale_price] => 6.360000 [unity] => [unit_price_ratio] => 0.000000 [additional_shipping_cost] => 0.00 [reference] => DUST-HESD [supplier_reference] => [location] => [width] => 0.000000 [height] => 0.000000 [depth] => 0.000000 [weight] => 0.560000 [out_of_stock] => 2 [quantity_discount] => 0 [customizable] => 0 [uploadable_files] => 0 [text_fields] => 0 [active] => 1 [redirect_type] => 404 [id_product_redirected] => 0 [available_for_order] => 1 [available_date] => 0000-00-00 [condition] => new [show_price] => 1 [indexed] => 1 [visibility] => both [cache_is_pack] => 0 [cache_has_attachments] => 0 [is_virtual] => 0 [cache_default_attribute] => 1 [date_add] => 2021-03-12 10:58:23 [date_upd] => 2024-03-08 15:45:27 [advanced_stock_management] => 0 [pack_stock_type] => 3 [free_delivery] => 0 [id_shop] => 1 [description] =>

Characteristics:
An internally smooth profile full plastic hose with very low flow resistance, good restoring force (after compression or kinking) with excellent flexibility, surface resistance according to DIN 53482 ≤ 1010 Ohm

Areas of application:
Industrial vacuum cleaners, textile machines, woodworking machines, granulate conveyors and apparatus construction

Temperature range:
-50 ° C to + 60 ° C

Color :
Black with blue shoulder

Available in 2 diameters (internal):

-25mm

-32mm

DUST COMMANDER compatible screw cuffs :

DUST COMMANDER GC

DUST COMMANDER GCx

***************************************************************************************************

internal Ø

mm

external Ø

mm

radius of curvature

(min) mm

Weight

kg/m

Vacuum

(max.) mbar

Pressure

(max.) bar
25 33.0 50 0.18 600 0.6
32 40.5 70 0.27 500 0.5

***************************************************************************************************

The hose with a nominal diameter of 25mm is compatible with the following fittings:

- FESTOOL 202346

The 32mm nominal diameter hose is compatible with the following fittings:

- BOSCH 2 608 000 585

[description_short] =>

Smooth inside profile all-plastic hose made of antistatic modified TPO

- highly flexible

- good restoring force

- high internal smoothness

Delivered in multiples of 3m. Maximum length of one piece: 24m

Our hoses are delivered in one piece. So if you order for example 2 units of 3m you will receive a single hose of 6m lenght.

[link_rewrite] => dust-commander-hesd-antistatic-vacuum-hose-3m [meta_description] => [meta_keywords] => [meta_title] => [name] => DUST COMMANDER HESD - Antistatic vacuum hose (3m) [available_now] => In stock [available_later] => Reference HESD32 is currently out of stock. Deliveries for this reference will resume on 21/03/2023. [id_image] => 26-111 [legend] => DUST COMMANDER HESD - Antistatic vacuum hose [manufacturer_name] => Sulaco A.I.R Works [category_default] => Accessories [id_product_attribute] => 1 [new] => 0 [allow_oosp] => 0 [category] => accessories [link] => https://www.dust-commander.com/gb/p/26-dust-commander-hesd-antistatic-vacuum-hose-3m.html [attribute_price] => 0 [price_tax_exc] => 16.24 [price_without_reduction] => 16.24 [reduction] => 0 [specific_prices] => [quantity_all_versions] => 38 [features] => Array ( [0] => Array ( [name] => Manufacturing material [value] => Thermoplastic Polyolefin (TPO) [id_feature] => 5 ) [1] => Array ( [name] => Weight [value] => 180g/m (25mm) - 270g/m (32mm) [id_feature] => 4 ) [2] => Array ( [name] => Color [value] => Black and blue [id_feature] => 7 ) ) [attachments] => Array ( ) [virtual] => 0 [pack] => 0 [packItems] => Array ( ) [nopackprice] => 0 [customization_required] => [rate] => 0 [tax_name] => ) 1

Smooth inside profile all-plastic hose made of antistatic modified TPO - highly flexible - good restoring force - high internal smoothness Delivered in multiples of 3m. Maximum length of one piece: 24m Our hoses are delivered in one piece. So if you order for example 2 units of 3m you will receive a single hose of 6m lenght.
16,24 €
Add to cart
In stock
DUST COMMANDER 60Lclc - 60 liter steel drum for DUST COMMANDER CLC
New product
Array ( [id_product] => 32 [id_supplier] => 0 [id_manufacturer] => 2 [id_category_default] => 2 [id_shop_default] => 1 [id_tax_rules_group] => 9 [on_sale] => 0 [online_only] => 0 [ean13] => 3760013430511 [upc] => 73102990 [ecotax] => 0.000000 [quantity] => 10 [minimal_quantity] => 1 [price] => 83.25 [wholesale_price] => 0.000000 [unity] => [unit_price_ratio] => 0.000000 [additional_shipping_cost] => 0.00 [reference] => DUST-60LCLC [supplier_reference] => [location] => [width] => 71.000000 [height] => 42.000000 [depth] => 41.000000 [weight] => 9.200000 [out_of_stock] => 2 [quantity_discount] => 0 [customizable] => 0 [uploadable_files] => 0 [text_fields] => 0 [active] => 1 [redirect_type] => 404 [id_product_redirected] => 0 [available_for_order] => 1 [available_date] => 0000-00-00 [condition] => new [show_price] => 1 [indexed] => 1 [visibility] => both [cache_is_pack] => 0 [cache_has_attachments] => 0 [is_virtual] => 0 [cache_default_attribute] => 0 [date_add] => 2021-10-06 11:32:26 [date_upd] => 2023-04-13 09:18:01 [advanced_stock_management] => 0 [pack_stock_type] => 3 [free_delivery] => 0 [id_shop] => 1 [description] => [description_short] =>

With pre-cut lid for model DUST COMMANDER CLC (white version).

[link_rewrite] => dust-commander-60lclc-60-liter-steel-drum-for-dust-commander-clc [meta_description] => [meta_keywords] => [meta_title] => DUST COMMANDER 60Lclc 60 liter steel drum for DUST COMMANDER CLC [name] => DUST COMMANDER 60Lclc - 60 liter steel drum for DUST COMMANDER CLC [available_now] => in stock ! [available_later] => The DUST COMMANDER S60 is currently out of stock. Pre-orders are accepted. Shipments for this reference will resume on 27/03/2021. [id_image] => 32-157 [legend] => DUST COMMANDER 60Lclc - 60 liter steel drum for DUST COMMANDER CLC [manufacturer_name] => Sulaco A.I.R Works [category_default] => Accueil [id_product_attribute] => 0 [new] => 0 [allow_oosp] => 0 [category] => accueil [link] => https://www.dust-commander.com/gb/p/32-dust-commander-60lclc-60-liter-steel-drum-for-dust-commander-clc-3760013430511.html [attribute_price] => 0 [price_tax_exc] => 83.25 [price_without_reduction] => 83.25 [reduction] => 0 [specific_prices] => [quantity_all_versions] => 10 [features] => Array ( [0] => Array ( [name] => Color [value] => black [id_feature] => 7 ) ) [attachments] => Array ( ) [virtual] => 0 [pack] => 0 [packItems] => Array ( ) [nopackprice] => 0 [customization_required] => [rate] => 0 [tax_name] => ) 1

With pre-cut lid for model DUST COMMANDER CLC (white version).
83,25 €
Add to cart
in stock !
M103N - Master/Slave switch 230 V/ AC (400 V/AC)
New product
Array ( [id_product] => 55 [id_supplier] => 0 [id_manufacturer] => 0 [id_category_default] => 16 [id_shop_default] => 1 [id_tax_rules_group] => 9 [on_sale] => 0 [online_only] => 0 [ean13] => 4024028031033 [upc] => 85364900 [ecotax] => 0.000000 [quantity] => 7 [minimal_quantity] => 1 [price] => 24.9 [wholesale_price] => 12.520000 [unity] => [unit_price_ratio] => 0.000000 [additional_shipping_cost] => 0.00 [reference] => KEMO-M103N [supplier_reference] => [location] => [width] => 16.000000 [height] => 8.500000 [depth] => 4.500000 [weight] => 0.260000 [out_of_stock] => 2 [quantity_discount] => 0 [customizable] => 0 [uploadable_files] => 0 [text_fields] => 0 [active] => 1 [redirect_type] => 404 [id_product_redirected] => 0 [available_for_order] => 1 [available_date] => 0000-00-00 [condition] => new [show_price] => 1 [indexed] => 1 [visibility] => both [cache_is_pack] => 0 [cache_has_attachments] => 0 [is_virtual] => 0 [cache_default_attribute] => 0 [date_add] => 2022-10-20 14:27:31 [date_upd] => 2024-02-11 09:44:50 [advanced_stock_management] => 0 [pack_stock_type] => 3 [free_delivery] => 0 [id_shop] => 1 [description] =>
Technical Data
Operating Voltage
 230 V/AC
Maximum Currents
15 A for the master, 15 A for the slave, but the total current must not exceed 16 A!
Example
if the master port needs 10 A, only one slave load of max. 6 A can be connected
Tripping Power The module connects at currents of approx. 40 mA or less
Operating temperature range -15 ºC to + 70 ºC
Switch Function Relay 1 x ON max. 16 A
Own Power Module <0.5 W
Dimensions without mounting brackets 67 x 65 x 37 mm
Connection Connection cable (single core)

Datasheet (pdf)

[description_short] =>

Automatically switches another load on when a machine, lamp etc., is turned on. It can monitor 1-phase or 3-phase (where a single phase is sampled) machines. On the output side, 1-phase devices (e.g. vacuum cleaner) are switched on automatically (or three-phase loads with an auxiliary relay, not included). Maximum of 15 A each. Total output: 3600 W.

[link_rewrite] => m103n-masterslave-switch-230-v-ac-400-vac [meta_description] => [meta_keywords] => [meta_title] => [name] => M103N - Master/Slave switch 230 V/ AC (400 V/AC) [available_now] => [available_later] => [id_image] => 55-239 [legend] => M103N - Master/Slave switch 230 V/ AC (400 V/AC) [manufacturer_name] => [category_default] => Accessories [id_product_attribute] => 0 [new] => 0 [allow_oosp] => 0 [category] => accessories [link] => https://www.dust-commander.com/gb/p/55-m103n-masterslave-switch-230-v-ac-400-vac-4024028031033.html [attribute_price] => 0 [price_tax_exc] => 24.9 [price_without_reduction] => 24.9 [reduction] => 0 [specific_prices] => [quantity_all_versions] => 7 [features] => Array ( ) [attachments] => Array ( ) [virtual] => 0 [pack] => 0 [packItems] => Array ( ) [nopackprice] => 0 [customization_required] => [rate] => 0 [tax_name] => ) 1

Automatically switches another load on when a machine, lamp etc., is turned on. It can monitor 1-phase or 3-phase (where a single phase is sampled) machines. On the output side, 1-phase devices (e.g. vacuum cleaner) are switched on automatically (or three-phase loads with an auxiliary relay, not included). Maximum of 15 A each. Total output: 3600 W.
24,90 €
Add to cart
In Stock
